Features
Precision Filtration - Captures debris down to 60 microns, ensuring crystal-clear water for your koi pond, fish pond, or ornamental pond.

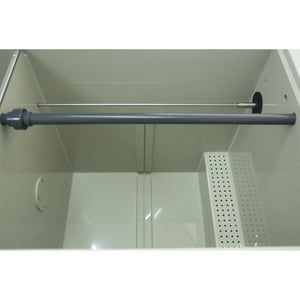

Advanced Biological Filtration - Integrated bio-chamber can be used with any bio media of your choice for converting harmful ammonia and nitrites into harmless nitrates.

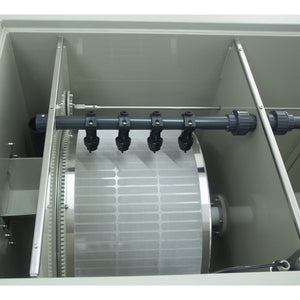

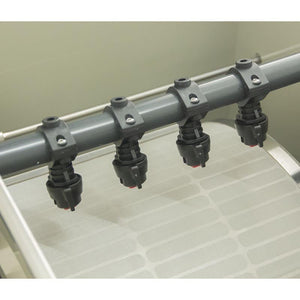

Fully Automatic Cleaning Mechanism - Utilises a low-wattage wash pump and motor to automatically clean the filter screen, eliminating the need for manual intervention.

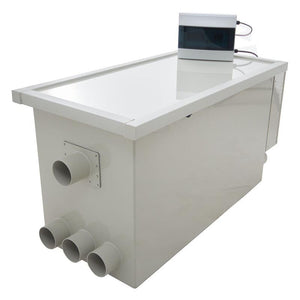

User-Friendly Control Box - Features a weatherproof control box with digital display and intuitive controls for easy operation.
Benefits
Exceptional Water Clarity - Provides crystal-clear water to create outstanding water features. Can be fitted with up to 2 x 20w Submersible UV's.
Effortless Filtration - Eliminates the need for manual filter cleaning, ensuring hassle-free operation.
Easy Installation - All the high quality components such as flushing pump are factory fitted, meaning you only have to connect the inlets, outlets, and waste using Eazy Connecters.
Specifications
| Feature | Specification |
| Screen Mesh | 60 Micron |
|
Max. Flow Rate (Gravity) |
35,000 Litres per hour/ 7700 UK Gallons per hour |
|
Max. Flow Rate (Pump Fed) |
25,000 Litres per hour/5500 UK Gallons per hour |
|
Inlets |
3 x 110mm |
|
Outlets |
3 x 110mm |
|
Bio Chamber Capacity |
100 litres of fluidised media |
|
Wash Pump Power Consumption |
150w |
|
Standby Power |
1.3w |
|

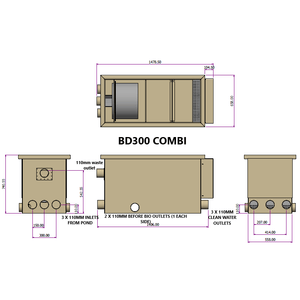

Dimensions |
(WHL) 658 x 740 x 1480 (MM) |
Additional Product Information

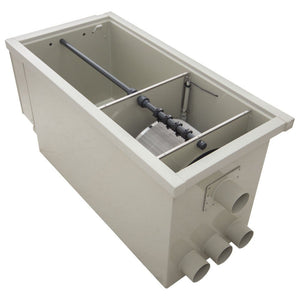

- The BD-300 drum filter is suitable for both gravity-fed and pump-fed systems.
- The installation height above water level is 170 mm.
- The filter comes with a cover switch that cuts power to the drum motor and UV when the lid is lifted off.

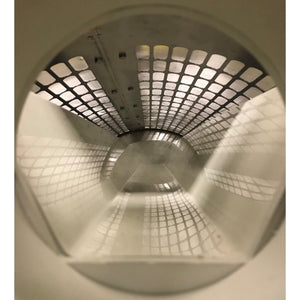

- The BD-300 comes with a solid stainless steel drum and gears for durability and long-lasting performance.
