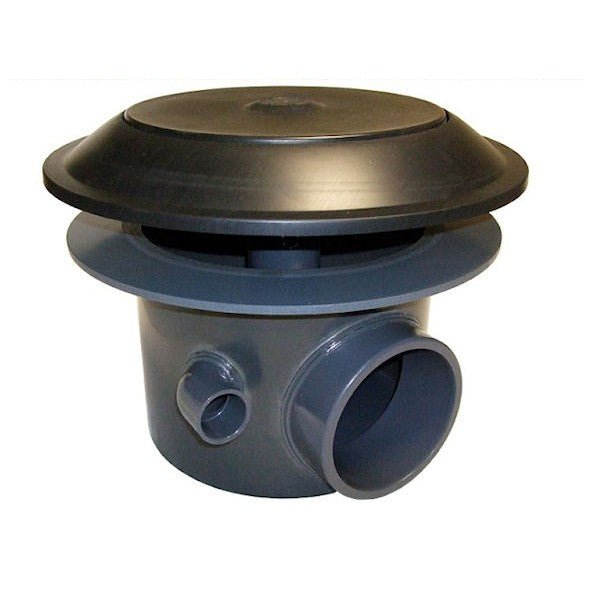

Spindrifter Aerated Bottom Drain

Notify me when this product is available:

The Spindrifter bottom drain is known worldwide for it's quality of build and unique design. This unit completely replaces the "Standard Bottom Drain".

The Fibreglass version comes with sump, stem, and aerated dome. The Liner version adds a clamping ring for liner and the required stainless steel screws.

The most noticeable feature of the Spindrifter Aerated Bottom is the extra connection in the sump of the drain. This allows the air supply hose to enter the sump independent of the water outlet pipe, thus eliminating the possibility of restriction to the water flow and somewhere else for blanket weed to attach.

The membrane and backing plate fit into a recess in the specially manufactured dome (provided). The recess in the dome prevents the membrane from becoming detached. The complete assembly is secured to the bottom drain by means of a stem, which also provides the air inlet. Most water pipe sizes can be accommodated, the customer to specify. The air inlet is via a nickel plated connector.

4" version will come with a 1" connection for the air duct, 3/8" for the air line.
