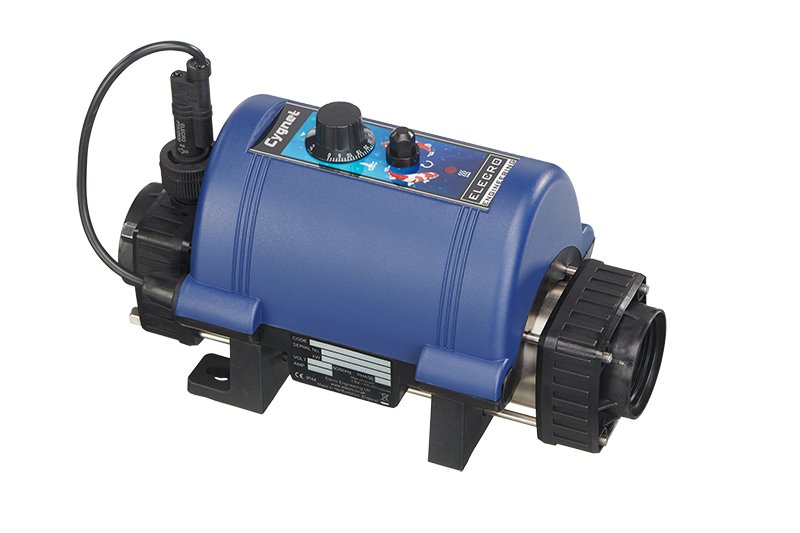

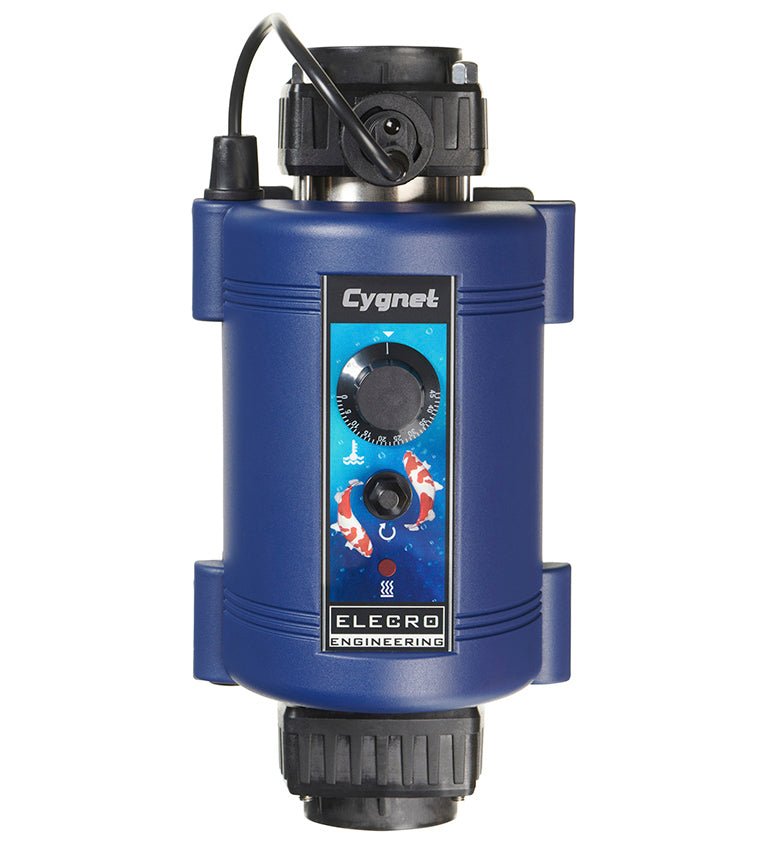

Specifically designed to ensure maximum safety, reliability and efficiency, the Cygnet Aquatic heater is user-friendly and offers “plug & play” installation for the 1-kW to 4-kW models. The thermostat dial gives you control over the desired pond temperature, while the thermal cut-out protects against over-heating.
| 220-240V 1-Phase | Load | Product Codes: | Net Weight | Gross Weight | Volume | |
| Power Output | [Amp] | UK Plug (Type G) | Euro Plug (Type F) | [kg] | [kg] | [m³] |
| 1-kW | 5 | KC-1-UK-T | KC-1-EU-T | 3.0 | 3.4 | 0.018 |
| 2-kW | 9 | KC-2-UK-T | KC-2-EU-T | 3.0 | 3.4 | 0.018 |
| 3-kW | 13 | KC-3-UK-T | KC-3-EU-T | 3.0 | 3.4 | 0.018 |
| 4-kW | 18 | KC-4-T* | 3.0 | 3.4 | 0.018 | |
| Power Supply |
220-240V single phase |
|---|---|

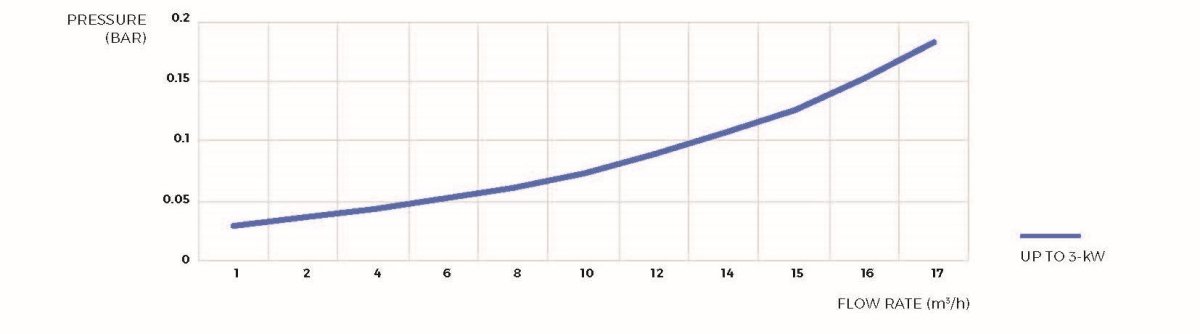

| Flow Requirements |
Minimum flow: 1m³/h |
| Heating Element |
Grade 1 titanium |
| Flow Tube |
Grade 1 titanium |
| Control Thermostat |
Analogue: 0>45°C (1.2°C differential) |
| Safety Thermal Cut Out |
60°C (manual reset) |
| Flow Switch |
Gold tipped reed switch with titanium fulcrum pin |
| Relay |
Surface mount DPDT Finder 66.82.8.230.0000 |
| Seals |
High temperature special formula EPDM ferrules, TPE end fitting gaskets |
| Water Connections |
1.5" BSP female thread supplied with 1½" / 50mm stepped ABS unions for rigid pipe and 1½" / 1¼" stepped hose tails for flexible pipe |
| Ingress Protection Rating |
IP44 |
| Frequency |
50/60 Hz |
| Working Pressure |
4 bar maximum |
| Mounting |
Floor or wall mounting |
